Our Range of Products from ABB

ABB Products

Sanghavi Enterprises takes the liberty of introducing itself as one of the leading merchant exporters of engineering products catering to the international and domestic markets.

ABB RCCB FB204 AC 63/0.03

ABB Make RCCB 1SYF204015R1630

FB200 AC and F200 type functions:
Protection against the effects of sinusoidal alternating earth fault currents, protection against indirect contacts, and additional protection against direct contacts (with IΔn=30 mA).

Application: Residential, commercial, industrial.

Standard: IEC/EN 61008-1; IEC/EN 61008-2-1

Marking: According to EN 61008-1; EN 61008-2-1

The RCCBs FB200 series assures protection to people and installations against fault current to earth.

Click here

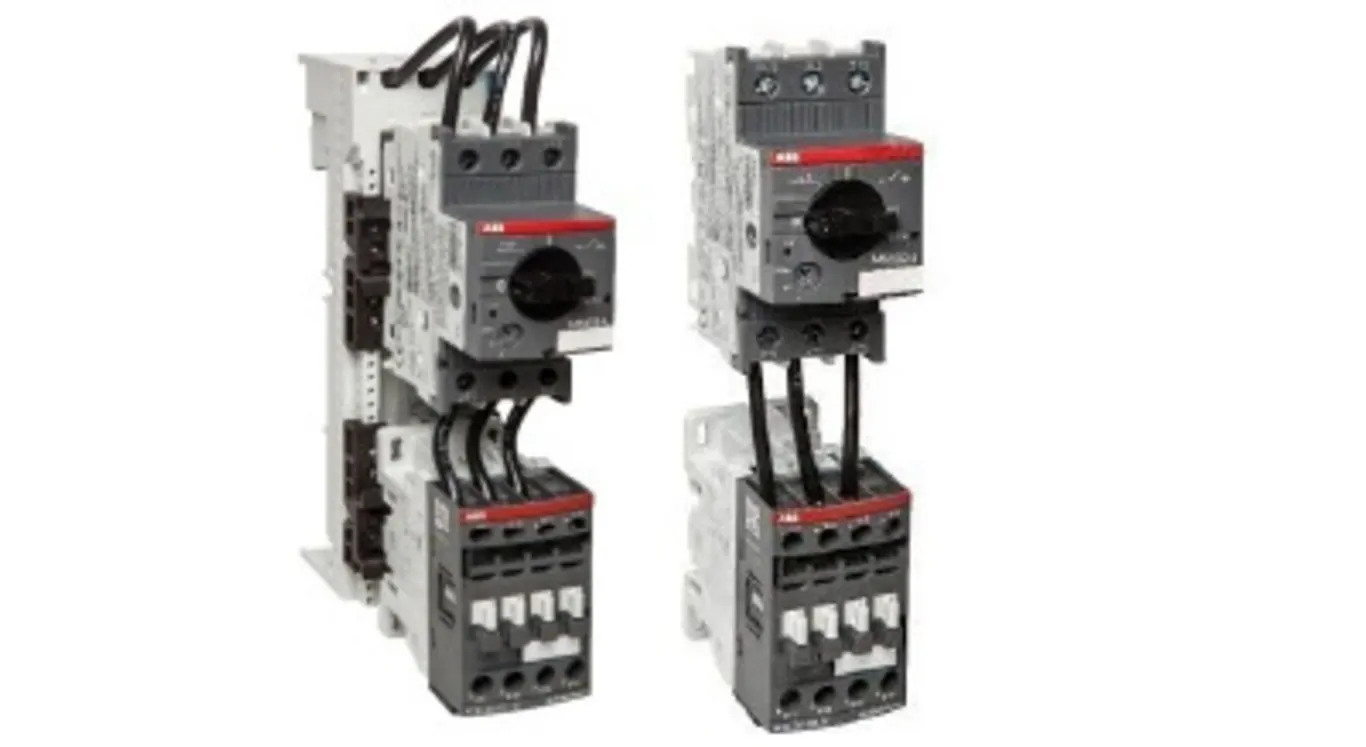

ABB Manual Motor Starter - MPCB

Motor Protection Circuit Breaker

The MS132-32 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 32.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 30 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.

Click here

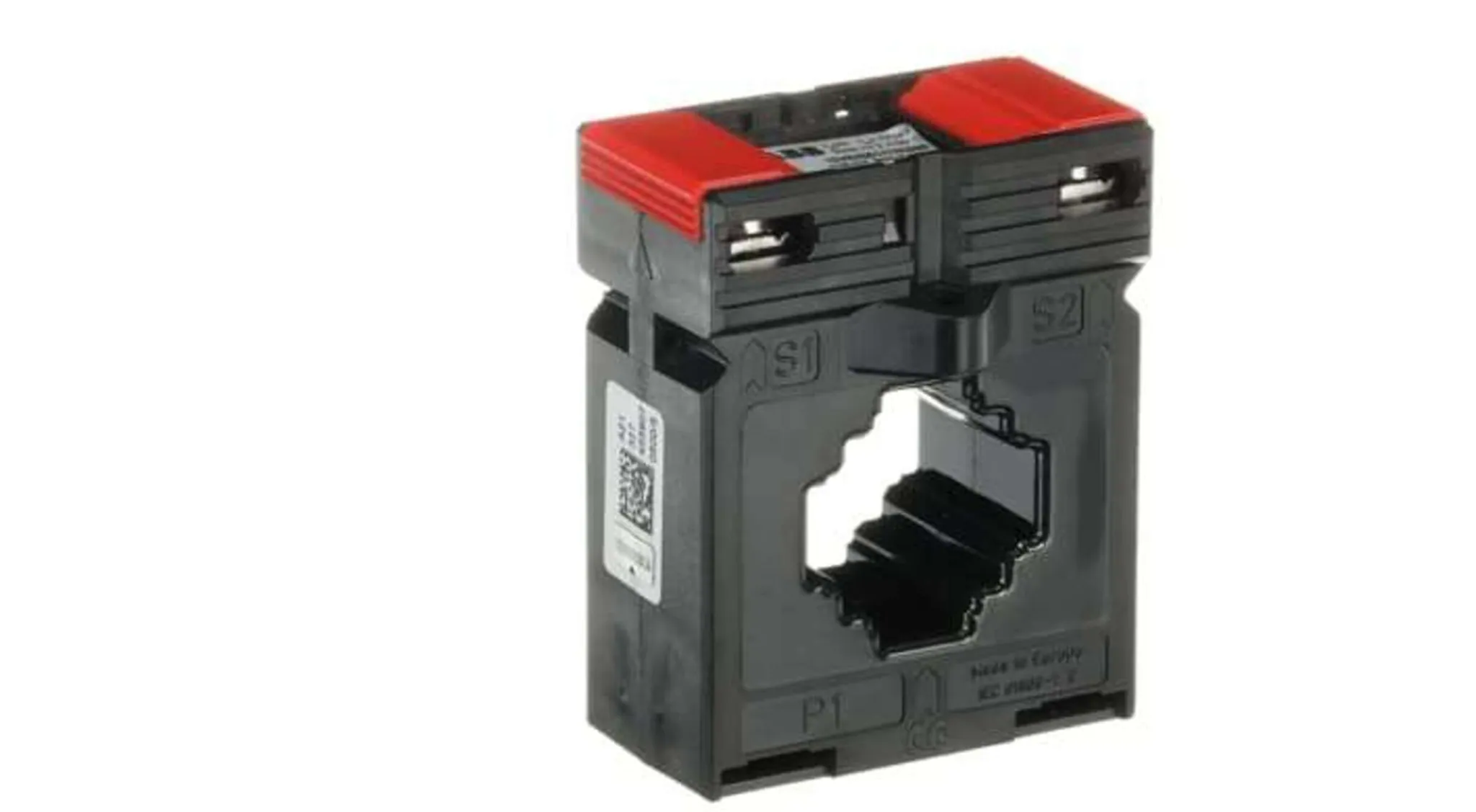

ABB CM-CT 500/5

1SVR450117R5300

The CM-CT 500/5 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 500 A and a secondary rated current of 5 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 500/5 will be delivered with a foot angle, an insulating protective cap, and bar fastening screws. A snap-on mounting for DIN rail is available as an accessory.

Click here

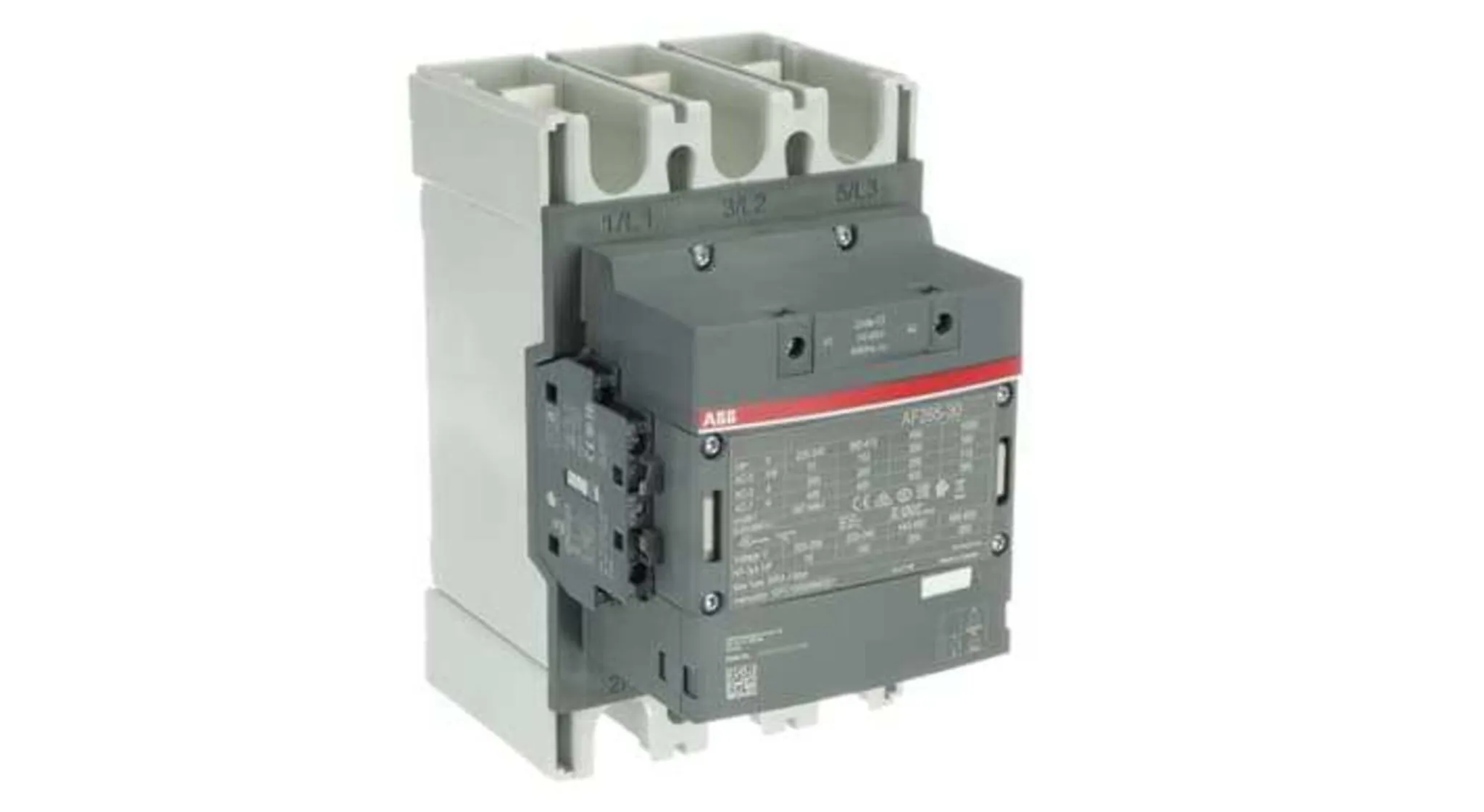

ABB Contactor from ABB Dealer Mumbai

ABB AF265-30-11-13 (100-250V AC/DC) • 1SFL547002R1311

The AF265-30-11-13 is a 3-pole, 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and main circuit bars, controlling motors up to 132 kW / 400 V AC (AC-3) or 200 hp / 480 V UL and switching power circuits up to 400 A (AC-1) or 350 A UL general use.

Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V, 50/60 Hz, and DC), managing large control voltage variations, reducing panel energy consumption, and ensuring distinct operations in unstable networks.

Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block-type design and can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

ABB Technical Broucher

1SL9185A00 Wiring Duct

WIRING DUCT HALOGEN FREE 40×80 4/6

Wiring ducts are made of HALOGEN-FREE thermoplastic material. They allow fast and simple wiring and are extremely space efficient. Metal trunking and trays for industrial use include trunking made of Galvanized metal and hot dip metal Galvanized after fabrication according to CEI 7.6 and BS 729 and cable ladders for maritime applications. This product line includes all necessary accessories for the most complex in-plant applications, in addition to a comprehensive and versatile solutions for trunking suspension.

ABB’s comprehensive experience in designing and manufacturing trunking systems for plastic and metal cables and ducts allows us to offer a full product line able to meet and specific needs of designers and installers. High production and quality control standards ensure full compliance to even the most stringent functional and visual appearance requirements. ABB’s trunking systems can be used for residential and commercial applications, such as the renovation and extension of existing buildings.

Please feel free to contact ABB Dealer at Loharchawl in Mumbai, Maharashtra.

R Sanghavi Mercantile Pvt Ltd

98200 30055

Wiring Duct Catalog

Emergency Stop CE4T-10R-02

ABB MUSHROOM TYPE STOP PUSH BUTTON 1SFA619550R1051

The CE4T-10R-02 emergency stop is compact.

Emergency stop
Twist release
Maintained
Mushroom 40 mm
Red
Non-illuminated
2NC – 0 NO – 2 NC – 24 … 300 V

This emergency stop is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost.

The compact range has a high level of dust and water resistance.

CE4T-10R-02 Emergency stop

ABB DEALER • ABB INDIA • ABB PRODUCTS

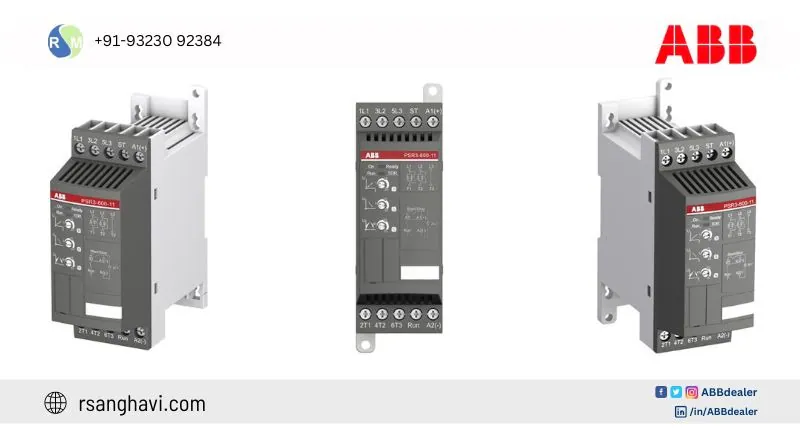

PSR37-600-11

ABB Soft Starter PSR37-600-11 1SFA896110R1100.

The softstarter PSR37-600-11 has a rated maximum operational current of 37 A with an operating voltage span from 208 to 600 V AC. The rated control voltage is 24 V AC/DC. PSR features a two-phase control soft start and stop through a voltage ramp. It has a built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state).

The start/stop ramp and time are easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact soft starter with basic functionality and values.

They are suitable for small three-phase motors with nominal currents from 3…105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps,

Technical Broucher

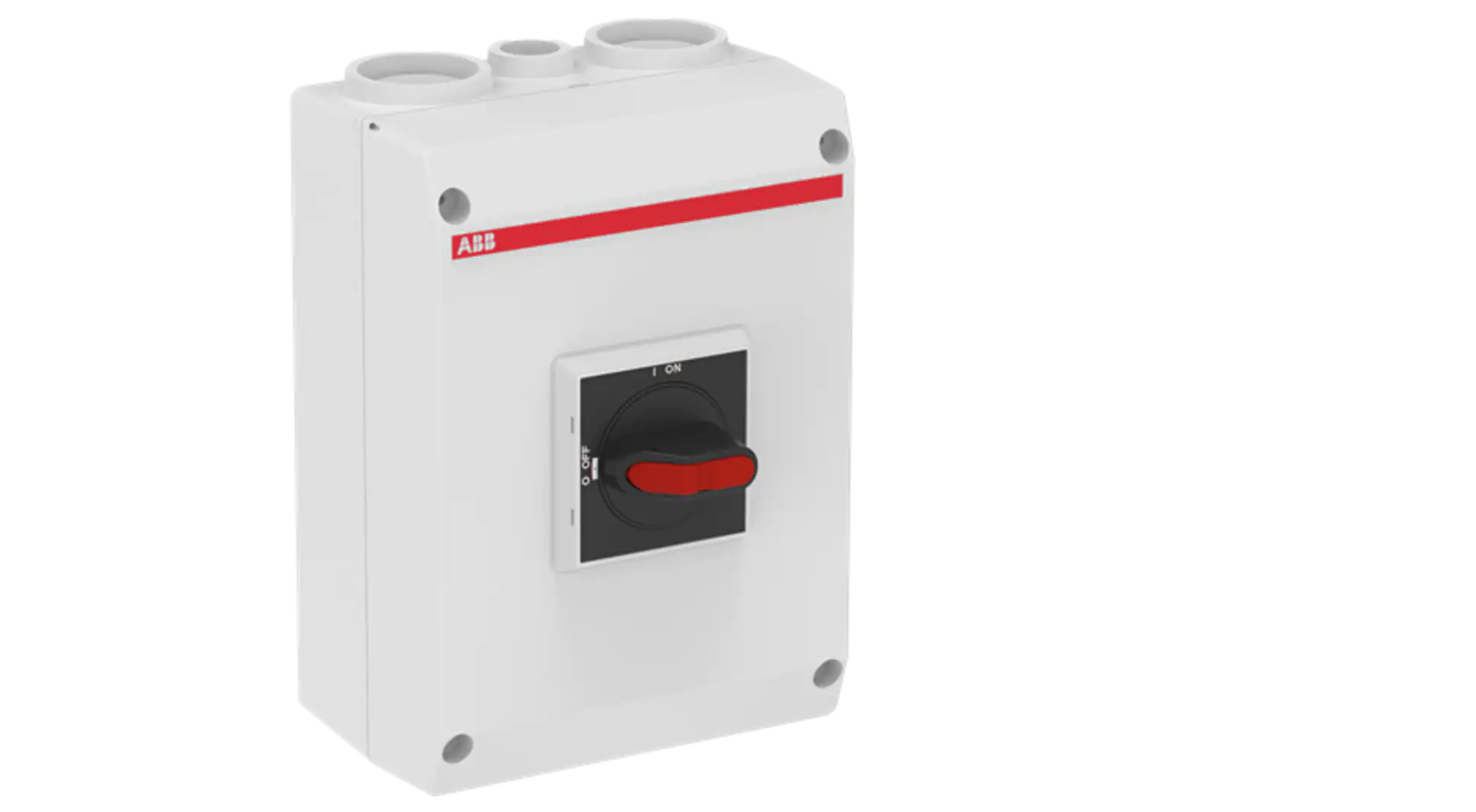

OTP25T3M

Detailed information for: OTP25T3M

OTP25T3M

Extended Product Type: OTP25T3M

Product ID: 1SCA022401R0090

Safety switch, 3-p. 415V AC23 30A, 15kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

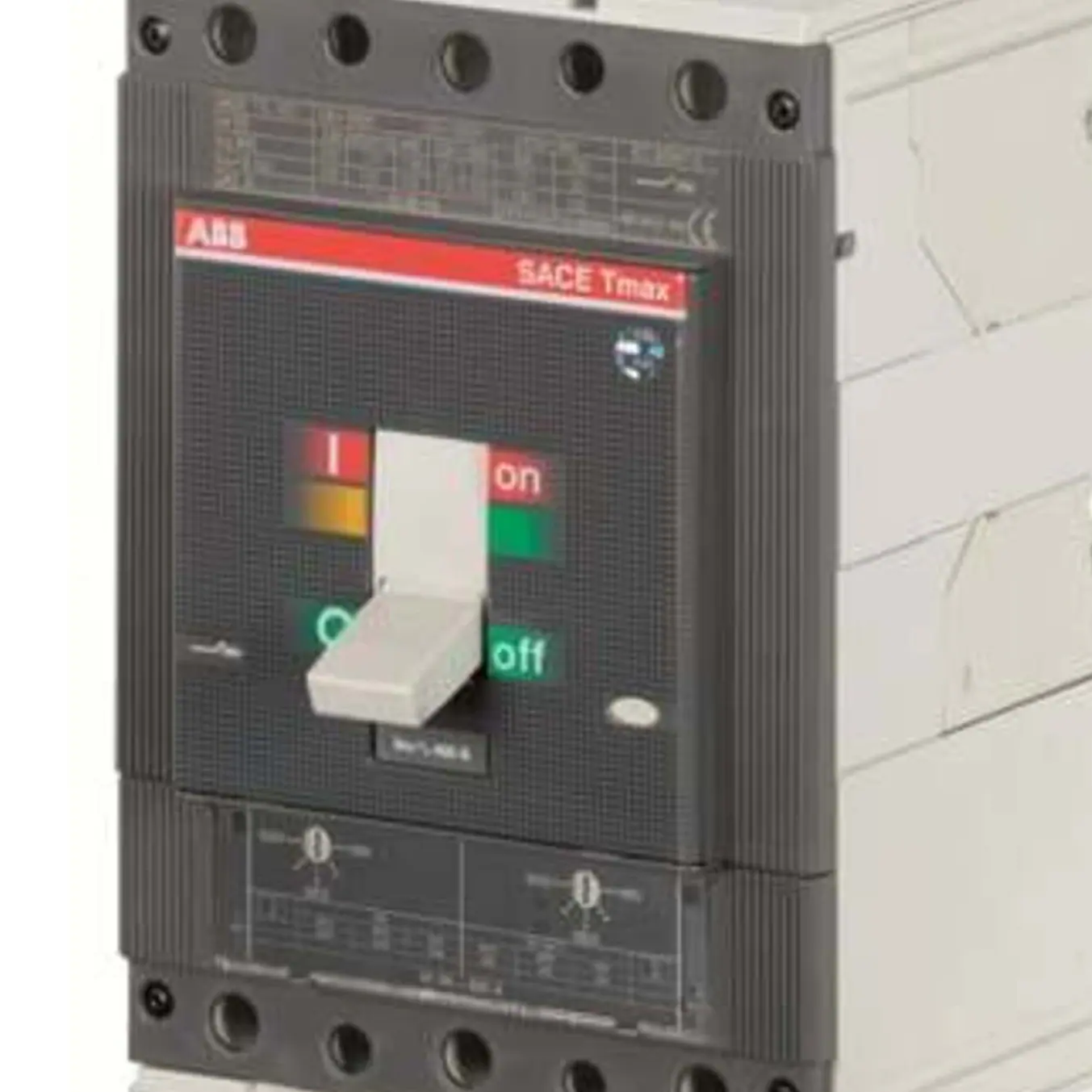

T5N 400 TMA 400-4000 3p F F

ABB Moulded Case Circuit Breaker • MCCB

Product ID: 1SDA054437R1

EAN: 8015644555412

Catalog Description: T5N 400 TMA 400-4000 3p F F

Long Description: C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000…4000 A

Customs Tariff Number: 85362090

Dimensions

Product Net Width: 140 mm

Product Net Height: 205 mm

Product Net Depth / Length: 103.5 mm

Product Net Weight: 4.549 kg

Container Information

Package Level 1 Units: 1 piece

Package Level 1 Width: 248 mm

Package Level 1 Height: 240 mm

Package Level 1 Depth / Length: 285 mm

Package Level 1 Gross Weight: 5.03 kg

Rated Operational Voltage: 690 V AC 750 V DC

Rated Service Short-Circuit Breaking Capacity (Ics):

(220 V AC) 70 kA

(230 V AC) 70 kA

(380 V AC) 36 kA

(400 V AC) 36 kA

(415 V AC) 36 kA

(440 V AC) 30 kA

(500 V AC) 25 kA

(690 V AC) 20 kA

ABB MCCB, Mumbai | 400Amps | ABB Dealer | ABB Switchgears

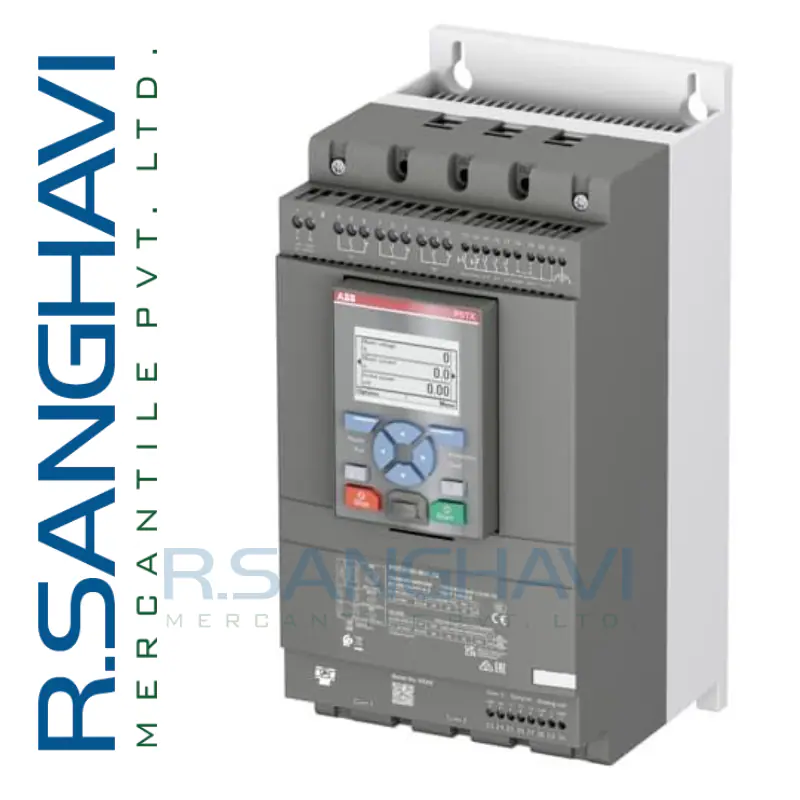

ABB Soft Starter

PSR | PSE | PSTX Soft Starter

The PSTX combines many years of research and product development with extensive knowledge of application specific requirements and needs. The PSTX is our latest advancement in motor control and protection and adds new functionality with increased reliability to any motor starting application.

Main benefits

Secure motor reliability

Improve installation efficiency

Increase application productivity.

Main features

Three-phase controlled

Operational voltage: 208-690 V AC

Wide rated control supply voltage: 100-250 V, 50/60 Hz

Rated operational current: 30…1250 A (inside delta: 2160 A)

Coated circuit boards

Torque control for excellent control of pumps.

Technical Broucher

AF400-30-11-70

The AF400-30-11-70 is a 3 pole – 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

AF460-30-11-70

AF460-30-11 100-250V 50/60Hz / 100-250V DC Contactor

The AF460-30-11-70 is a 3-pole, 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and main circuit bars, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL and switching power circuits up to 700 A (AC-1) or 650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V, 50/60 Hz, and DC), managing large control voltage variations, reducing panel energy consumption, and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block-type design and can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Container Information

Package Level 1 Units: box 1 piece

Package Level 1 Width: 280 mm

Package Level 1 Depth / Length: 375 mm

Package Level 1 Height: 310 mm

Package Level 1 Gross Weight: 12 kg

Technical Broucher

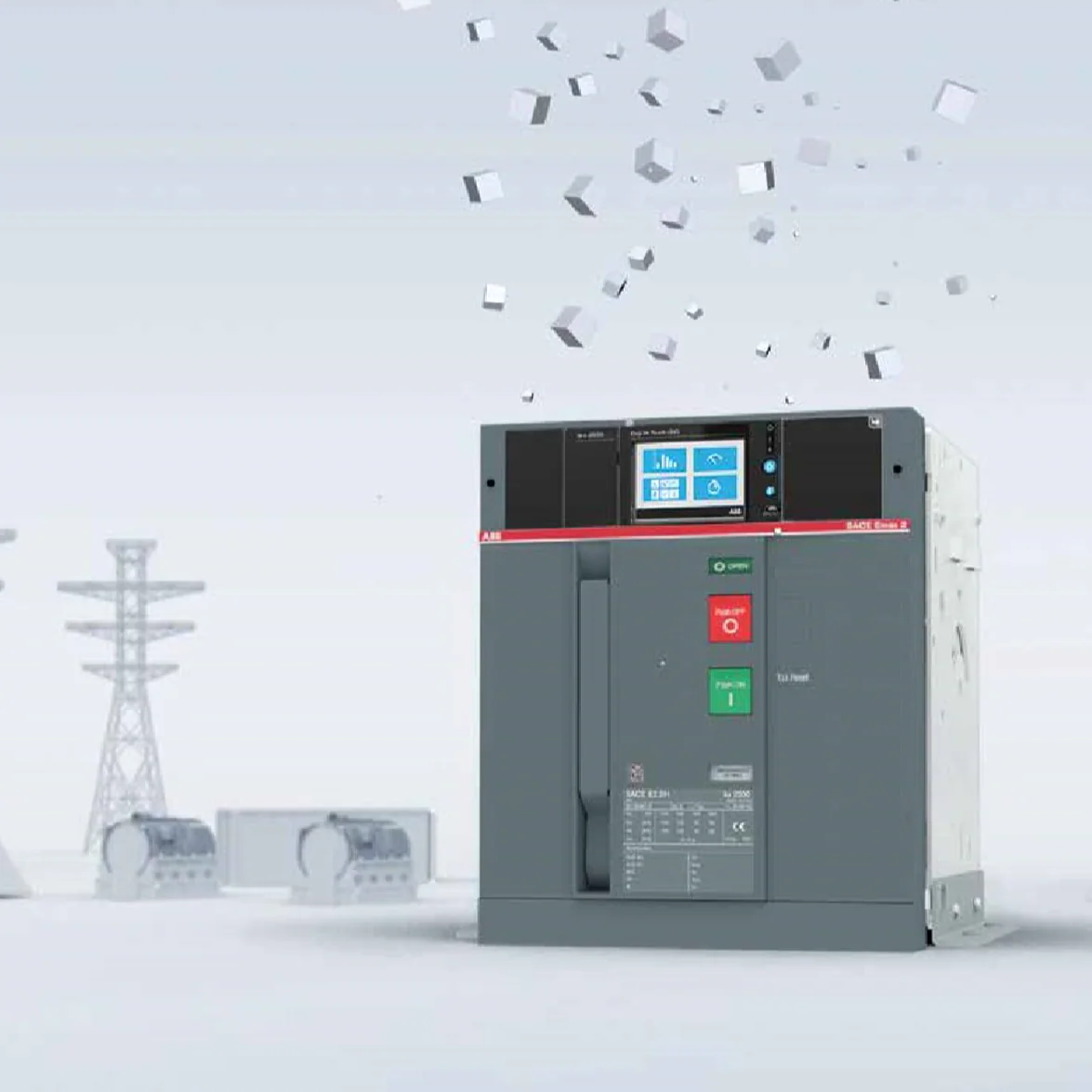

ABB Air Circuit Breaker

Pioneer in manufacturing ACB

ABB has now unveiled the innovative Emax 2 all-in-one , the evolution of the Emax 2 into a multifunctional platform that is able to manage the next generation of electrical distribution systems such as microgrids.|
Emax 2 all-in-one is the first circuit breaker that meets new grid requirements. It enables a direct communication to the new energy management cloud-computing platform ABB Ability™ Electrical Distribution Control System.

Smart plug and play architecture makes Emax 2 all-in-one easy to use. Leveraging also unmatched electrical performances, Emax 2 sets a new circuit breaker benchmark for the needs of today and tomorrow.
SACE Emax 2, the all-in-one solution to manage “low-voltage distribution systems

EMAX 2 Broucher

ABB Contactors A Line /AF Range

To keep things moving, you need Control. Connect to Control

Access Global Support

The contactor and motor protection range from ABB is compatible with all major national and international standards and is available worldwide via a global distribution network. One contactor coil now handles 100 V – 250 V, AC/DC for use in

Europe or Asia as well as North America

Simplify design

By reducing contactor coil energy consumption by up to 80%, panels can be built smaller and transformers more compact. All the features of the AF technology, along with access to drawings and coordination tables online, simplifies your design

and assembly process.

Optimize logistics

With its contactor and motor protection range, ABB has managed to reduce the number of contactor coils to just four. The total number of product variants has been reduced by up to 90%. This simplifies the customers’ logistics and cuts administration

costs.

Contractors Catalog
